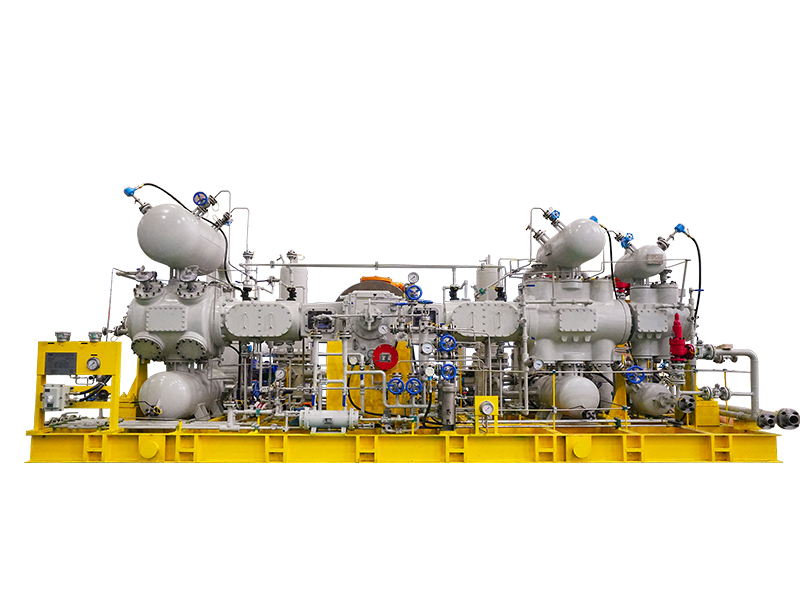

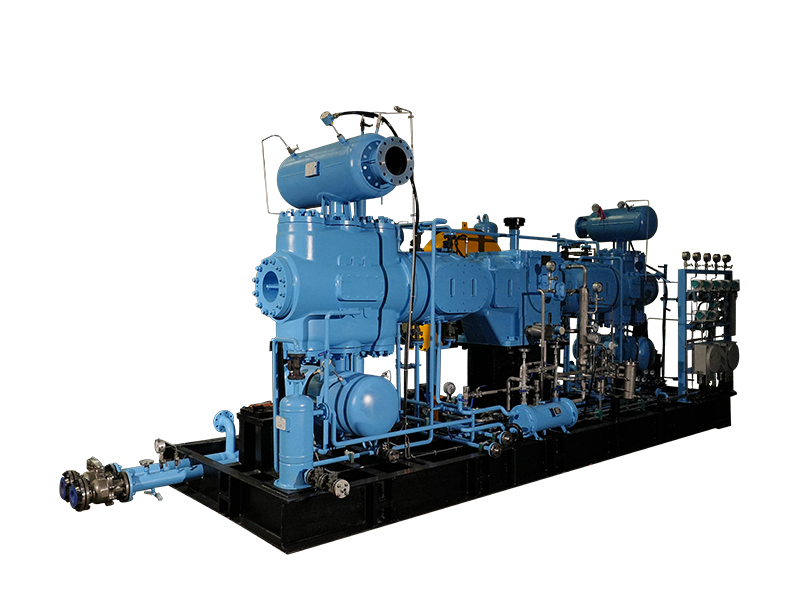

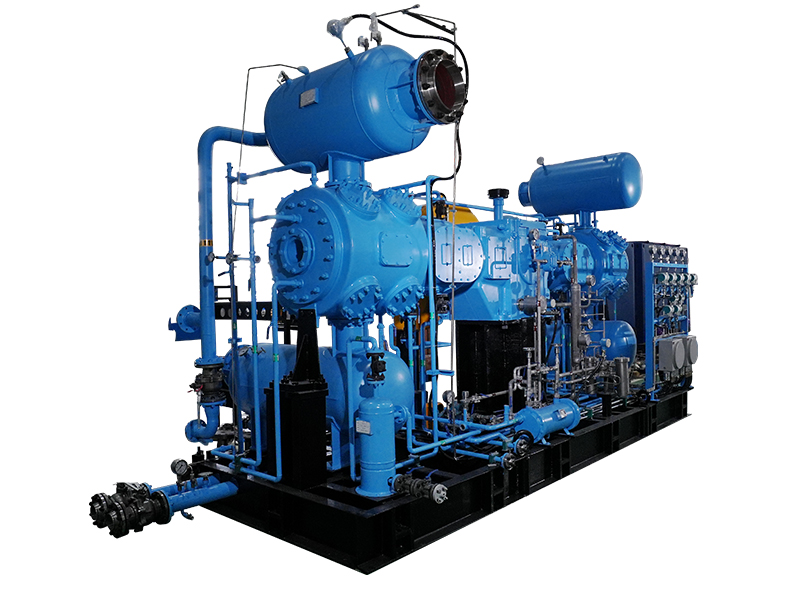

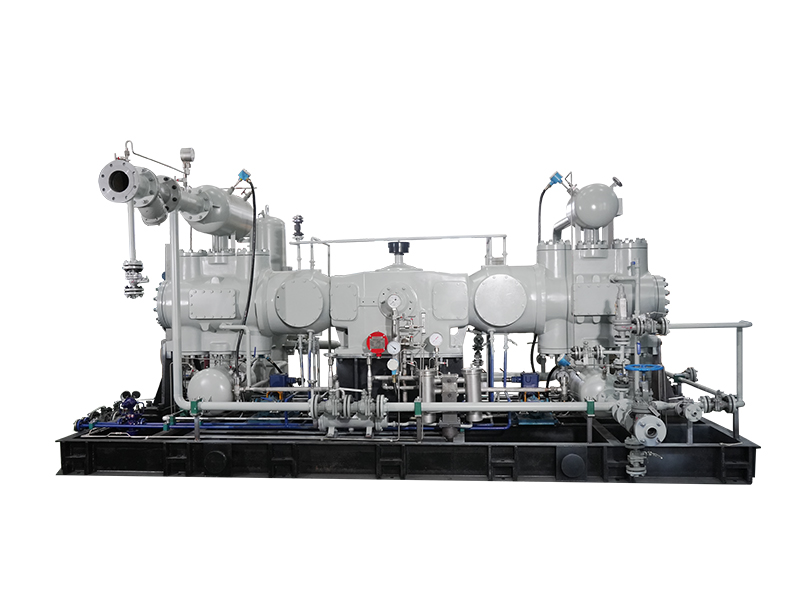

The piston compressor is a type of positive displacement compressor. Due to its characteristics such as wide ranges of discharge pressure and displacement, and high volumetric efficiency, it is widely used in many industries including petrochemical, silicon and fluorine chemical, hydrogen production, and metallurgy. For piston compressor models, the piston force ranges from 25 to 800KN, the maximum pressure can reach 25 MPa, and the rotational speed ranges from 300 to 1000rpm. There are various models such as M, D, L, and P types, more than 60 product series. The number of compressor stages can achieve pressure matching from one stage to six stages. The products comply with the API 618 standard and fully cover market demands.
| Piston Force (KN) | 800 | 500 | 320 | 250 | 160 | 100 | 65 | 45 | 30 |
| Compressed Gas | Hydrogen, Oxygen, Natural Gas, Ethylene, Propylene, Coal Gas, Hydrogen Fluoride, Hydrogen Chloride, Carbon Dioxide, Chloromethane, Carbon Monoxide, Acetylene, Dichloromethane, Difluoromethane, Tetrafluoroethylene, Pentafluoroethane, Hexafluoropropylene, etc | ||||||||
| Discharge Pressure (MPa(G)) | ≤25 | ≤30 | |||||||
| Compression Stages | 1~4 Stages | 1~6 Stages | 1~3 Stages | ||||||
| Number of Throws | 2~4 | 2~6 | 1~4 | ||||||
| Arrangement Type | M/D | M/D | M/D | M/D | M/D | M/D/P | M/D/P | M/D/L/P | L/P |
| Stroke (mm) | 280~360 | 240~320 | 180~240 | 200 | |||||
| Speed (rpm) | 300~375 | 333~450 | 375~585 | 420~485 | |||||
| Max. Motor Power (kW) | 5600 | 3600 | 3300 | 2700 | 1250 | 800 | 560 | 250 | 75 |
| Skid-mounted | Non-skid-mounted | Non-skid-mounted / Skid-mounted | Skid-mounted | ||||||
| Digital Simulation Design | √ | ||||||||
| Pulsation Calculation | √ | ||||||||
| Process Inspection | According to the quality plan, inspect key components for chemical composition, mechanical properties, flaw detection, hydrostatic testing, airtightness testing, etc | ||||||||
| Factory Inspection | According to the quality plan, conduct no-load mechanical running test | ||||||||
| Site Acceptance | Operate under actual working conditions, 72-hour assessment and acceptance | ||||||||
| Application Industries | Petrochemical industry, silicon chemical industry, fluorine chemical industry, metallurgy, hydrogen production, etc | ||||||||
Product Characteristics：Wide range of exhaust pressure and volume, high volumetric efficiency
Product Type：M, D, L, P and many other models for one to six stage of compression
Rotary Speed：300 – 585rpm
Unmanned Operation：One-click automatic start/ stop is adopted to achieve unmanned operation
Safe and Reliable：Conforms to API 618 standard
