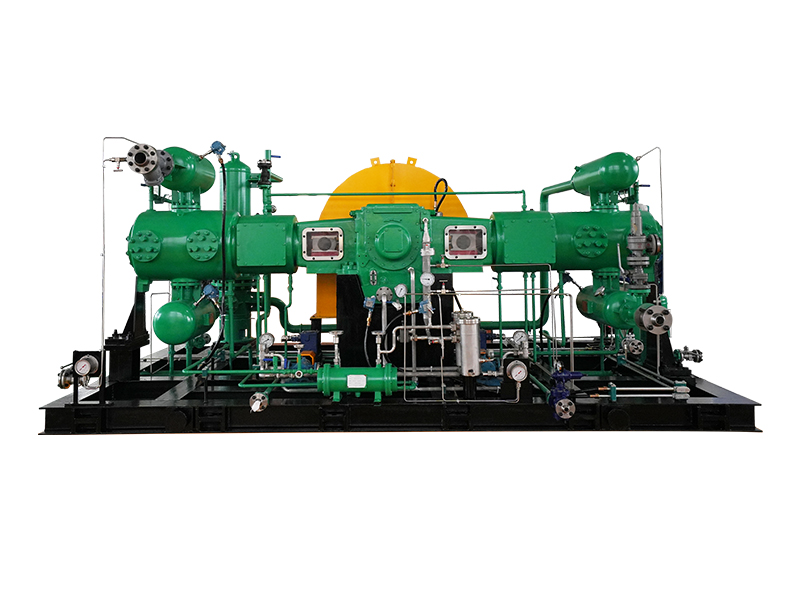

The high-speed compressor is a positive displacement piston compressor. It is widely used in industries such as petrochemical, silicon & fluorine chemical, hydrogen production, and metallurgy due to its characteristics of wide discharge pressure and displacement ranges, high volumetric efficiency, and small footprint. The high-speed compressor types include M-type and D-type, capable of achieving 1 to 4 stages of compression, featuring high rotational speed, high balance, and compact footprint. As a professional gas compressor factory, FKW Compressor provides customized compressor solutions tailored to customers’ specific working conditions, ensuring each product fully meets on-site performance and reliability requirements.
| Piston Force (KN) | 100 | 50 | 25 |
| Compressed Gas | Hydrogen (H2), Oxygen (O2), Nitrogen (N2), Natural Gas, Ethylene (C2H4), Propylene (C3H6), Coal Gas, Hydrogen Cyanide (HCN), Hydrogen Chloride (HCl), Carbon Dioxide (CO2), Methyl Chloride (CH3Cl), Carbon Monoxide (CO), Acetylene (C2H2), Monochloromethane (CH3Cl), Dichloromethane (CH2Cl2), Tetrachloroethane (C2H2Cl4), Pentafluoroethane (C2HF5), Hexafluoropropylene (C3F6), etc | ||
| Discharge Pressure MPa(G) | ≤30 | ||
| Compression Stages | 1-4 stages | ||
| Number of Throws | 2~4 | ||
| Layout | M/D | ||
| Stroke (mm) | 115 | 100 | |
| Speed (rpm) | 600-1500 | ||
| Max Motor Power (KW) | 630 | 315 | 200 |
| Skid Mounting | Non-skid-mounted / Skid-mounted | Skid-mounted | |
| Digital Simulation Design | √ | ||
| Pulsation Calculation | √ | ||
| Process Inspection | According to the quality plan, inspections such as chemical composition, mechanical properties, flaw detection, hydrostatic testing, and airtightness testing are performed on key components | ||
| Factory Inspection | According to the quality plan, no-load/load mechanical running tests are conducted | ||
| On-site Acceptance | Operation under actual working conditions, 72-hour assessment and acceptance | ||
| Application Industries | Fluorine chemical industry, silicon chemical industry, metallurgy, petrochemical industry, etc | ||
Product Characteristics:
Wide range of exhaust pressure and volume, high volumetric efficiency
Small footprint
Product Type: Models M and D for one to four stage compression
Rotary Speed rpm: 600 – 1500rpm
